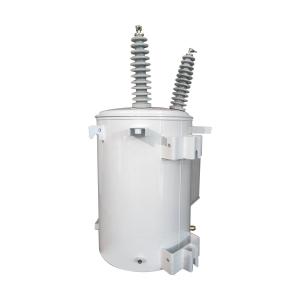

25kva Oil Immersed Distribution Single Phase Pole Mounted Transformer 12.4kv
Main data
| 12.47kV 25kVA pole mounted transformer specifications |
| Energy efficiency | ANSI C57.12 | HV/LV Winding | Copper |
| Std | IEEE C57.12.20 | No load loss | 104w |
| Power rating | 25 kVA | On load loss | 377w |
| HV Voltage | 12.47 kV | Frequency | 60Hz |
| LV Voltage | 480Y/277V | Vectorgroup | Ii6 |
| HV BIL | 95kV | Color | ANSI 60 Grey |
| LV BIL | 30kV | Tank & Accesories | 590kg |
| Length | 780mm | Oil weight | 200kg |
| Width | 1020mm | Total weight | 875kg |
| Height | 1280mm | Impedance | 3.00% |
| Polarity | Additive | HV/LV Winding | Copper |
Feature
Quality System ISO 9001 certified, Meet DOE Energy Efficiency Standard or exceeds ANSI/IEEE and CSA standards
- Lifting lugs
- Arrester mounting pads
- Cover-mounted high votage porcelain
- Bushing(s) with eyebolt terminal
- Low voltage bushings wtih eyebolt terminals
- Low voltage enutral grounding strap(not shown)(10-50kVA class B-2 and B-3 only)
- ANSI support lugs(hanger brackets) with laser inscribed nameplate on lower bracket
- Polyester insulated cover
- Self-venting and resealing cover assembly
- Centerline core/coil assembly support brackets
- Low voltage leads
- Oil fill plug with cover ground strap
- Tank ground pad
- The fllowing additional features are all standard on self protected type CSP units only
- Primary protective link (mounted in high voltage bushing)
- Surge arrester
- Secondary circuit breaker
- Secondary breaker operating handle with emergency overload reset and overload signal light
Optional Accessories
1. Surge Arrester
2. Protective Link
3. Current Limiting Fuse
4. Low Voltage Circuit Breaker
a. Circuit Breaker Emergency Control
b. Signal Light
5. Protecto Combo
6. Tap Changer
7. Dual Voltage Swithc
8. Tank Pressure Relief
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
