2000Kva Three Phase Pad Mounted Transformer Oil Immersed12.47KV Distribution UL Certified
WINLEY is a professional transformer manufacturer and supplier. Various international standards can be customized for your transformer, such as: IEEE/ANSI(C57.12.34 ), CSA(C227.4 & C227.5), IEC, DOE, NEMA.WINLEY produces transformers with UL/cUL, ISO, CE etc certifications.
Main data
| ZGS-H-2000/12.47 specification data |
| No. | Particulars | Unit | Specification | Remark |
| 1 | Type | ~ | pad mounted, oil filled | loop feed |
| 2 | Rated capacity | kVA | 2000 | |
| 3 | No. of Phase | ~ | 3 phases | |
| 4 | Primary voltage | V | 12470GrdY/7200 | Grounded Wye |
| Primary bushing | ~ | 15kV class, 200A Well&insert | dead front |
| BIL | kV | 95 | |
| 5 | Secondary voltage | V | 480Y/277 | |
| Secondary buhsing | ~ | 10-hole NEMA spade | live front |
| BIL | kV | 30 | |
| 6 | Tapping type | ~ | off-circuit | |
| 7 | Tapping range | % | ±2*2.5% | |
| 8 | Cooling method | ~ | KNAN | |
| 9 | Rated frequency | Hz | 60 | |
| 10 | Vector group | ~ | Ynyn0 | |
| 11 | Insulation class | ~ | E | |
| 12 | Temperature rise | ℃ | 65 | |
| 13 | Off-load loss | W | 2100 | ±10% tolerance |
| 14 | On-load loss (85℃) | W | 19130 |
| 15 | Impedance | % | 5.0~7.5 |
| 16 | Winding material | ~ | Copper | |
| 17 | Core material | ~ | silicon steel | |
| 18 | Cooling material | ~ | FR3 | |
| 19 | Tank&enclosure | ~ | NEMA 3R (green) | |
| 20 | Dimension | mm | 2500*2200*1900 | for reference only |
| 21 | Weight | kG | 4600 |
| 22 | Service condition | ~ | indoor or outdoor | |
| 23 | Sea level | M | ≤1000 | |
| 24 | Standard | ~ | ANSI C57.12.34 | |
STRUCTURE
- HV bushings

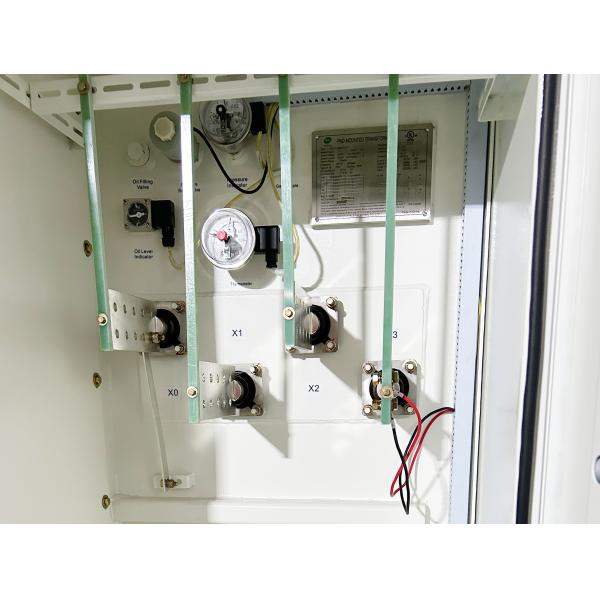

- LV bushings
- Tap Change
- Insulating Oil
- Oil level gauge
- Liquid temperature gauge
- Pressure vacuum gauge
- Lifting Lugs
- Grounding Terminals

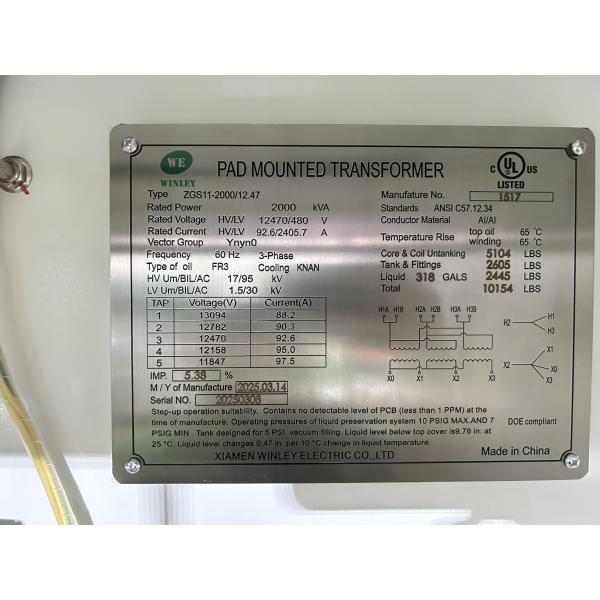

- Nameplate
- Load break switch
- Bayonet fuse
- ELSP fuse
- Oil drain valve with sampler
- Drain valve
Drawing
Specification
Rated Power
(KVA) | High Voltage
(KV) | Low Voltage
(V) | No-load Loss
(W) | On-load Loss
(W) | Height
(mm) | Depth
(mm) | Width
(mm) | Weight
(kg) | Weight
(Lbs) |
| 75KVA | 34.5KV
4.160KV
12.47KV
13.2KV
13.8KV
24940GrdY/14400
1247Grdy/7200
4160GrdY/2400
or others | 277V
347V
480V
600V
120/240V
208GrdY/120
415GrdY/240
480GrdY/277
600Y/347 | 180 | 1250 | 1430 | 910 | 1930 | 645 | 1422 |
| 150KVA | 280 | 2200 | 1530 | 980 | 1510 | 989 | 2180 |
| 300KVA | 480 | 3650 | 1680 | 1080 | 1660 | 1415 | 3119 |
| 500KVA | 680 | 5100 | 1790 | 1160 | 1810 | 1905 | 4200 |
| 750KVA | 980 | 7500 | 2030 | 1300 | 2030 | 2755 | 6074 |
| 1000KVA | 1150 | 10300 | 1854 | 1549 | 1651 | 3235 | 7132 |
| 1500KVA | 1640 | 14500 | 2150 | 1570 | 2210 | 5835 | 12864 |
| 2000KVA | 2160 | 20645 | 2220 | 1600 | 2380 | 6430 | 14175 |
| 2500KVA | 2680 | 23786 | 2330 | 1650 | 3070 | 8865 | 19544 |
| 3000KVA | 3300 | 30300 | 2460 | 1850 | 3260 | 11300 | 24912 |
| 3735KVA | 4125 | 37875 | 2680 | 2060 | 4080 | 14400 | 31746 |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
