25 kVA SinglePhase Pad Mounted Transformer 13200V To 240V Oil Immersed Power Electrical Distribution
Single-phase pad-mounted transformers are compact, self-contained electrical device.It has the characteristics of small size, light weight, low noise, low loss, safety and reliability.It is widely used in residential quarters, commercial centers, hospitals, parks, schools, etc.
Why choose us
1. WINLEY single-phase transformer has obtained UL/cUL certification, with a capacity of 10-333KVA and a voltage of up to 34.5KV
2. The products are designed according to multiple standards and meet or even exceed DOE 2016, IEEE, ANS, CSA, IEC, NEMA and other standards.
3. The monthly delivery capacity is over 800 units, and fast delivery can be achieved within 4 weeks.
Main data
| Transformer Type | Pad Mounted, Compartmental-Type II |
| Transformer Feed Type | radial Feed |
| Phase | Single Phase |
| Capacity | 25 |
| Vector Group | II6 |
| Primary Voltage | 13200V |
| Primary Voltage Class | 15 kV Class |
| Primary BIL | 95 KV |
| Secondary Voltage | 240/120V (L-N-L) |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Cooling Class | KNAN; Self-Cooled |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 48 dBA |
| Elevation (Altitude) | 3300ft (1000 meters) Above Sea Level |
| Core Material | Steel |
| Tank Material | 304 Stainless Steel |

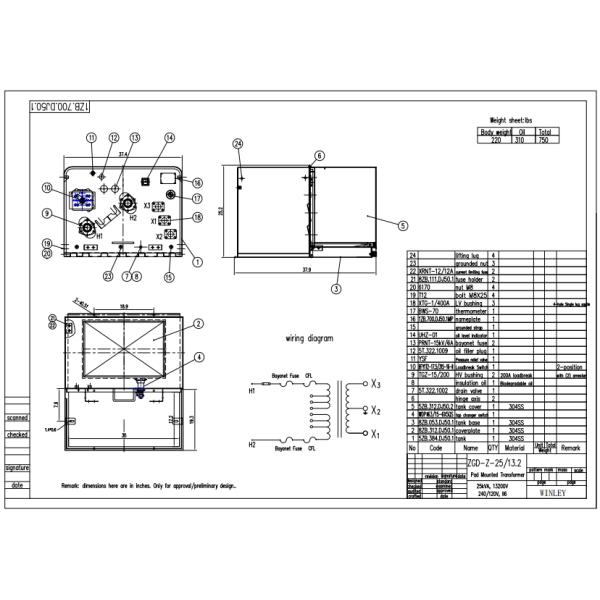

Drawing
Performance Characteristic
- Safety and Security: These transformers are typically enclosed in tamper-proof, lockablemetal cabinets. This design helps ensure safety, reducing the risk of accidental contact with live electrical parts.
- Ease of Maintenance: Their design allows for easy access for maintenance and repair work. Utility workers can quickly open the cabinet to perform necessary tasks.
- Voltage Regulation: They play a crucial role in voltage regulation, ensuring that the electricity supplied to homes and businesses is within the required voltage range.
- Energy Distribution: These transformers are a critical part of the electrical distribution network, ensuring that electricity is effectively and safely distributed from the power grid to the end-users.
- Customization: They can be customized based on specific needs, such as varying power capacities, to cater to the requirements of different neighborhoods or facilities.
- Reliability and Durability: They are built to be reliable and durable, often lasting many years with minimal maintenance, which is crucial for uninterrupted power supply. These transformers are essential components in the electrical distribution network, playing a key role in ensuring that electricity is safely and efficiently delivered to end-users.
Specification
| Single phase Pad mounted Transformer Specification |
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) |
| 15 kVA | 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others | 50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106
|
Ratings
- Meets/Exceeds DOE 2016 Efficiency Ratings
- Complies with ANSI / IEEE #C57.12.00
- Complies with ANSI / IEEE #C57.12.25
- Complies with ANSI / IEEE C57 12.28
- Complies with ANSI / IEEE C57 12.38
- Complies with ANSI / IEEE C57.12.70
- Complies with ASTM D3487
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
Drawing
|
|
UL Listed 25 kVA SinglePhase Pad Mounted Transformer 13200V To 240V Oil Immersed Power Electrical Distribution Transformer Images
|
